Customized High Torque 12v 24v Planetary Gearbox Dc Motor

Name: Customized High Torque 12v 24v Planetary Gearbox Dc Motor
Brand: FUTENG
Price: 1 USD

Wholesale Customized High Torque 12v 24v Planetary Gearbox Dc Motor from china suppliers

Model Number : FT-36PGM545

Brand Name : FUTENG

Place of Origin : China

MOQ : 1000 Pieces

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 8000 0000

Delivery Time : 15-30 days/Negotiable

Packaging Details : Standard Export Carton & Customzied

Certification : CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949

Continuous Current(A) : 430mA-2500mA

Efficiency : 65%-95%

Rated Power : 1-48w

Rated voltage : 3-24v, 12v/24v

Speed Rpm : 1rpm-1200rpm

Torque : 1-118 kgf.cm, 230/240/230/250(g.cm)

Type : Gear Motor

Usage : Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty : 3 months ~ 1 year

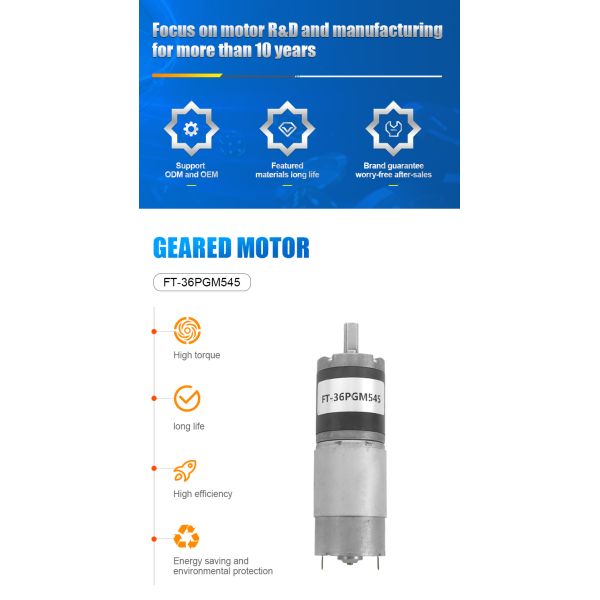

Geared motor model : FT-36PGM545

Gear box size : 36mm

Rotating speed : 8000/10000/5000(rpm)

Current : 300/330/150/160(mA)

Output : 10.2/10.5/11.2(w)

Name : DC Planetary Gear Motor

Contact Now

FT MOTOR

FT MOTOR Geared motor model: FT-36PGM545 Gearbox diameter: Ø36mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

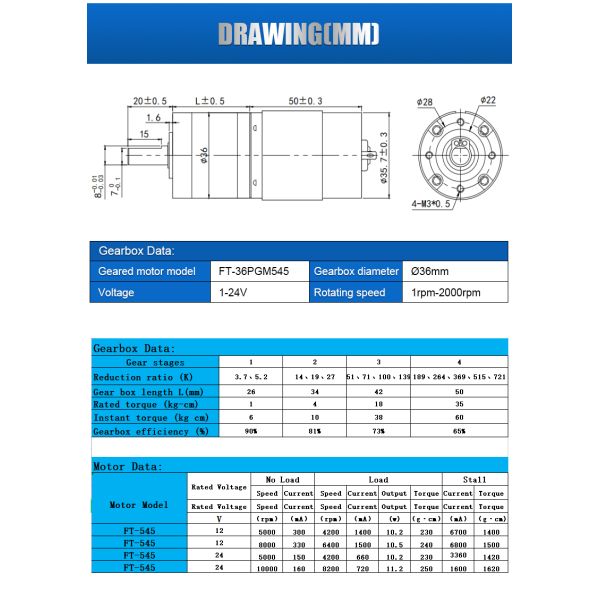

Gearbox Data:
Gear stage	1	2	3	4
Reduction ratio (K)	3.7,5.2	14,19,27	51,71,100,139	189,264,369,515,721
Gear box length L(mm)	26	34	42	50
Rated torque (kg·cm)	1	4	18	35
Instant torque (kg·cm)	6	10	38	60
Gearbox efficiency (%)	90%	81%	73%	65%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-545	12	5000	300	4200	1400	10.2	230	6700	1400
FT-545	12	8000	330	6400	1500	10.5	240	6800	1500
FT-545	24	5000	150	4200	660	10.2	230	3360	1420
FT-545	24	10000	160	8200	720	11.2	250	1600	1620
